Technical Specifications – SECURITY ULTRA Solar LED Light
| Light Output | 300 Watts 400 Watts 500 Watts 700 Watts |
|---|---|
| Lumens | 900 Lumens 1500 Lumens 2000 Lumens 3000 Lumens 4000 Lumens |
| Beam Angle | 120° |
| Standard | IP65 |
| Solar Panel | Monocrystalline Silicon 5V - 6 W 5V - 12 W 5V - 18 W 5V - 25 W 5V - 25 W |
| Battery | LiFePO4 32650 3.2V 5000 mAh 3.2V 10 000 mAh 3.2V 15 000 mAh 3.2V 20 000 mAh 3.2V 20 000 mAh |
| Charging Time | 6 - 8 Hours |
| Lighting Duration | - 16 hours: Automatic mode (constant lighting, intelligent battery management) - 210 times: Sensor mode (full-brightness lighting for 1 minute) |
| Materials | Iron + Tempered glass |
| Frequency | 50 - 60 Hz |
| LED Type | SMD2835 |
| Number of LEDs | 80 pcs 100 pcs 208 pcs 300 pcs 408 pcs |
| Detection angle | 100° |
| Detection Distance | 10 meters |
| Maximum Recommended Installation Height | 6 meters |
| Remote control range | 10 meters |
| Lamp | 21 x 20 x 5 cm 24 x 23 x 5 cm 28 x 25 x 5 cm 32 x 32 x 5 cm 37 x 36 x 5 cm |
| Solar panel | 23 x 21 x 2 cm 38 x 24 x 2 cm 42 x 33 x 3 cm 42 x 38 x 3 cm 45 x 42 x 3 cm |
| Weight | 1,27 kg 2,2 kg 3,2 kg 3,82 kg 5,19 kg |
| Warranty | 2 years |

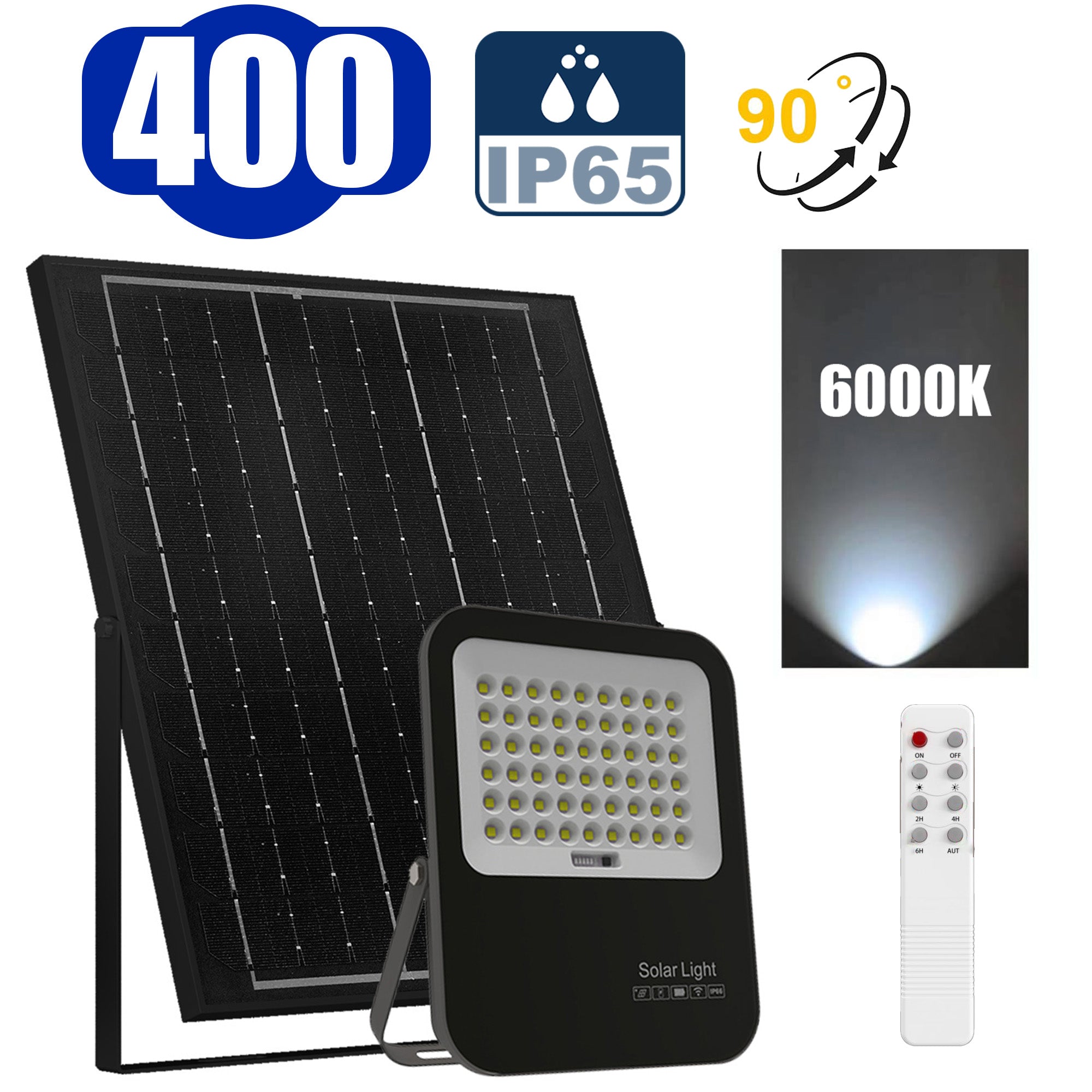

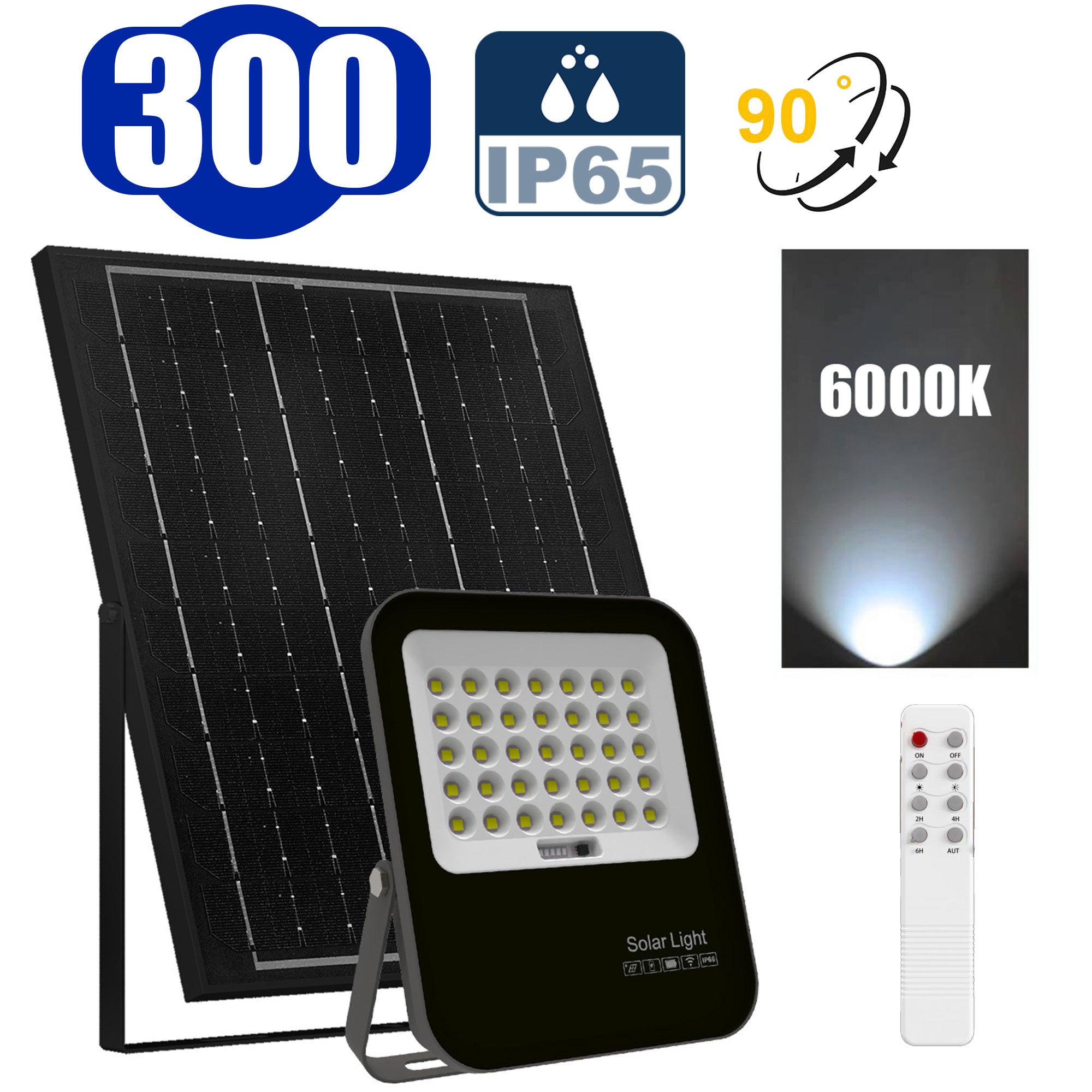

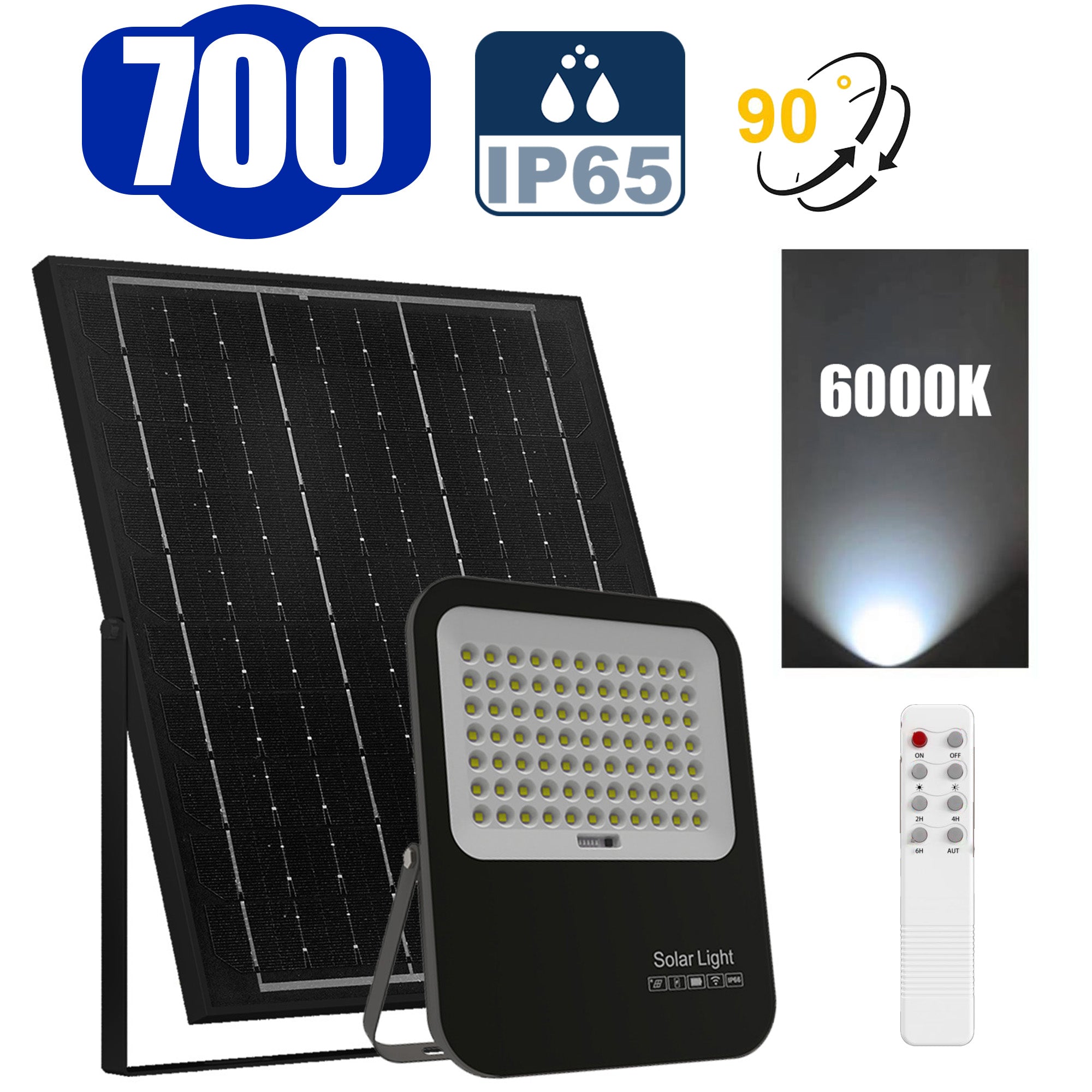

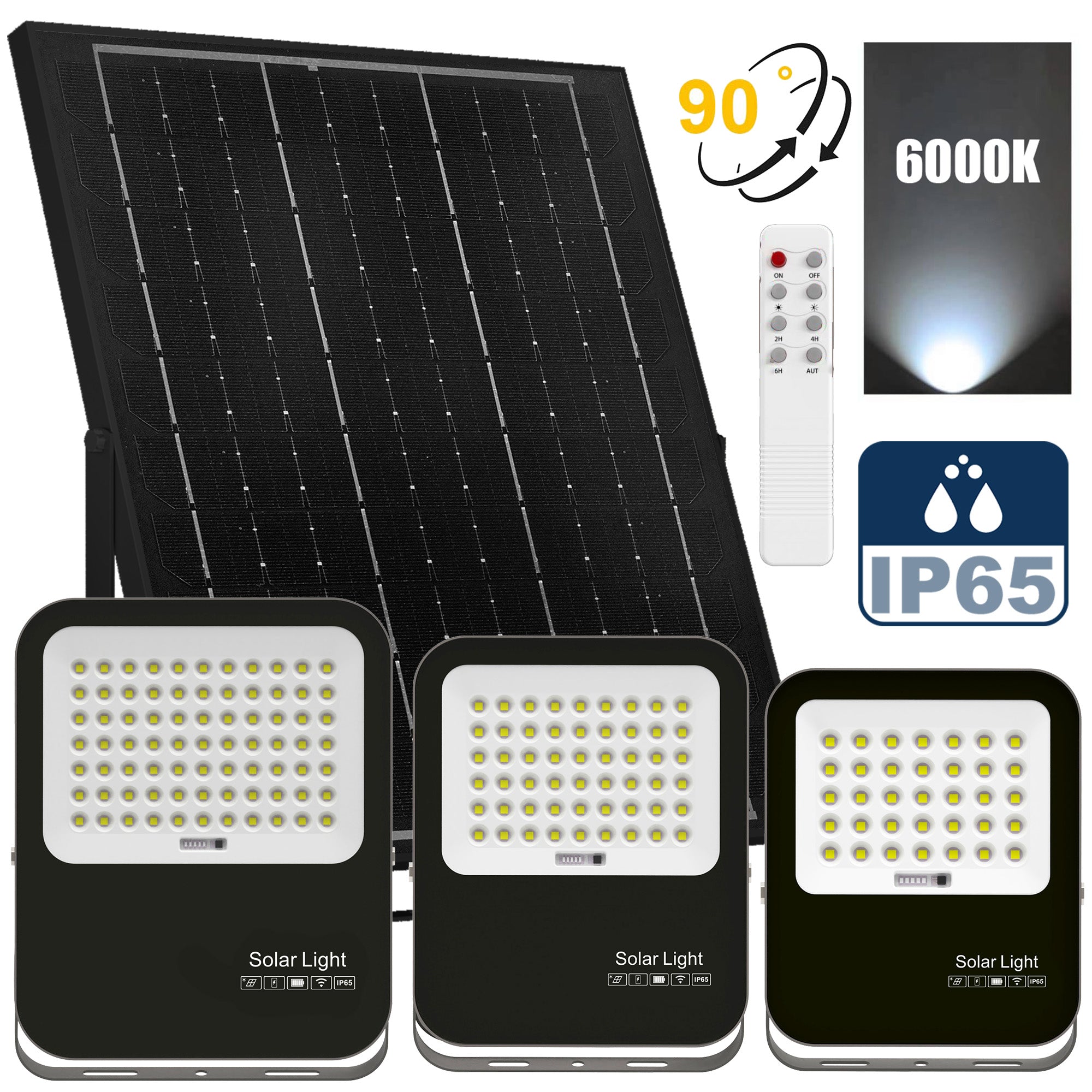

Technical Specifications – BIG BOY V3 Solar LED Light
| S31057 | S31058 | S31059 | |
|---|---|---|---|
| Light Output | 300W | 400W | 700W |
| Lumens | 1400 Lumens | 2100 Lumens | 4000 Lumens |
| Solar Panel | 5V - 10 W | 5V - 20 W | 5V - 30 W |
| Battery | 3.2V 10 000 mAh | 3.2V 20 000 mAh | 3.2V 30 000 mAh |
| Number of LEDs | 35 pcs | 60 pcs | 77 pcs |
| Lamp | 225 x 188 x 45 mm | 275 x 225 x 45 mm | 332 x 275 x 45 mm |
| Solar panel | 205 x 300 x 17 mm | 390 x 300 x 17 mm | 430 x 390 x 17 mm |
| Weight | 2,15 kg | 2,82 kg | 4,72 kg |
| Charging Time | 4 - 6 Hours |
|---|---|
| Lighting Duration | 12 Hours |
| Beam Angle | 90° |
| Standard | IP65 |
| Materials | Die-cast aluminum + PC lens |
| LED Type | SMD3030 |
| Warranty | 2 years |

Main Features of the BIG BOY V3 Floodlight
Remote Control Overview
Take full control of your solar floodight with our easy-to-use remote control.







| 1 | |
|---|---|
| 2 | Switch off key |
| 3 | Time control mode: 100% for 10 minutes, from 100% to 80% 1hr, from 80% to 70% 1hr, from 70% to 60% 1hr, from 60% to 50% 1hr, from 50% to 50% 1hr.down to 60% 1hr, from 60% down to 50% 1hr, from 50% down to 30% 1hr, from 30% down to 20% 10 minutes, from 20% to Daybreak 3H: 3 hours timer button timer to the point after the shutdown, without power memory function, the next day automatically light up 3 hours timer, power down to reset, need other timing need to use the remote control. Need other timing need to use the remote control to reset. Power down mode and AUTO key function of the first 3 hours of the same, the light control effective . 5H: 5 hours timer key timer to the point after the shutdown, and so on, and so on, the light control is effective . 8H: 8 hours of timer key timer to the point after the shutdown, ditto and so on, the light control is effective . |
| 4 | Brightness plus key (timer mode and time control mode) |
| 5 | Brightness down key (timer mode and time control mode) |


| KEY | FUNCTION |
|---|---|
| 1 | On urns on the lamp and switches to AUTO mode. |
| 2 | Bright light Maintains 100% brightness and turns off when the battery is depleted (approximately 3 hours). |
| 3 | Always on for 2 hours |
| 4 | Always on for 6 hours |
| 5 | Automatic mode |
| 6 | Always on for 4 hours |
| 7 | Dim light Maintains 35% brightness and turns off after 12 to 14 hours. |
| 8 | OFF Press and hold the “OFF” button for 3 seconds.The lamp will turn off but will remain rechargeable.It cannot be turned on again until the “ON” button is pressed. |
Product presentation video
Discover all the features and benefits of our solar street light in this short video overview
Product presentation video
Discover all the features and benefits of our solar street light in this short video overview
Light up smarter with BIG BOY V3
Discover how the BIG BOY V3 can enhance your outdoor lighting experience
Smart Motion Detection
The BIG BOY V3 uses a standby-free motion sensor for maximum efficiency.
In detection mode, the floodlight turns on at full brightness when motion is detected, then automatically switches to a low standby light if no further movement is detected.


High-Efficiency Monocrystalline Solar Panel
High-performance monocrystalline solar panel, designed to maximize energy absorption even in low sunlight conditions. Known for their superior efficiency and long lifespan, monocrystalline panels ensure faster charging and better power conversion compared to traditional solar technologies.
